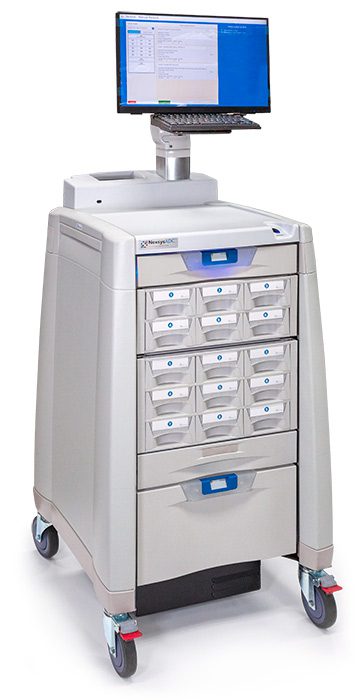

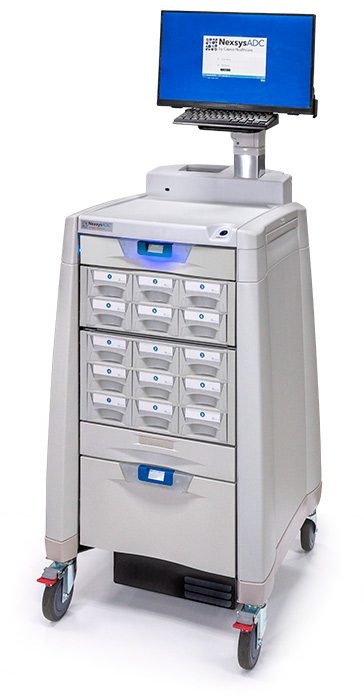

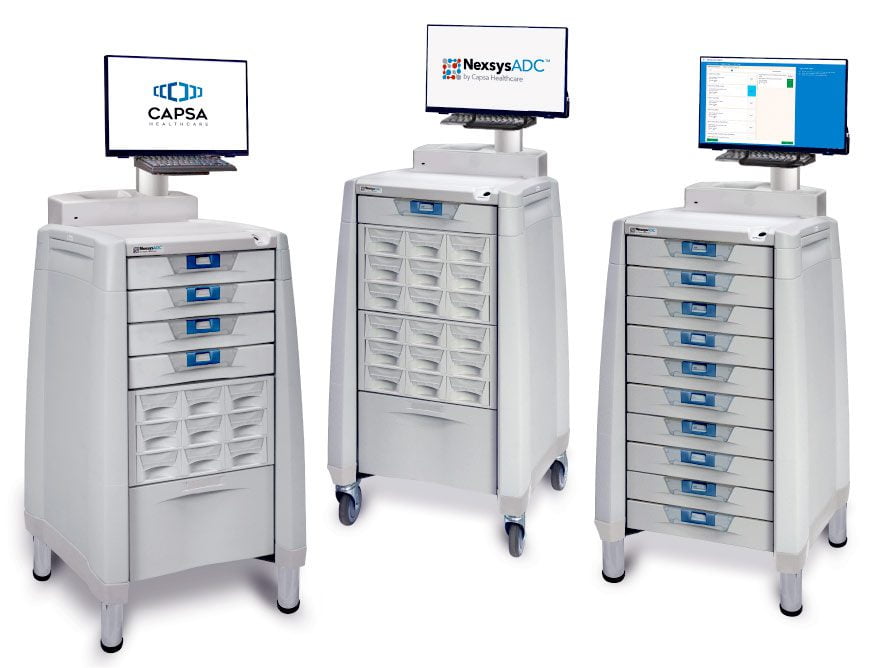

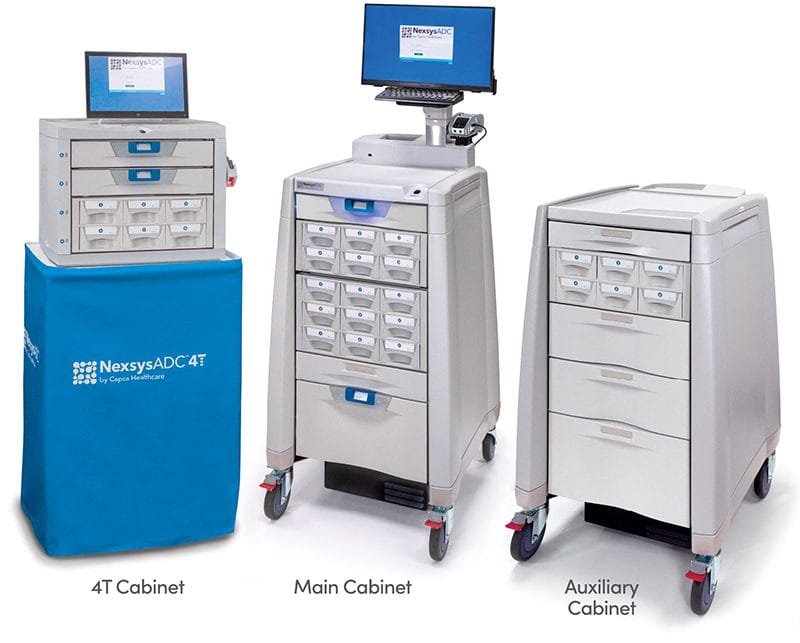

A NexsysADC main cabinet contains 10 tiers, to be configured with any combination of Controlled Access Modules (CAMs), medication bins, and supply drawers.

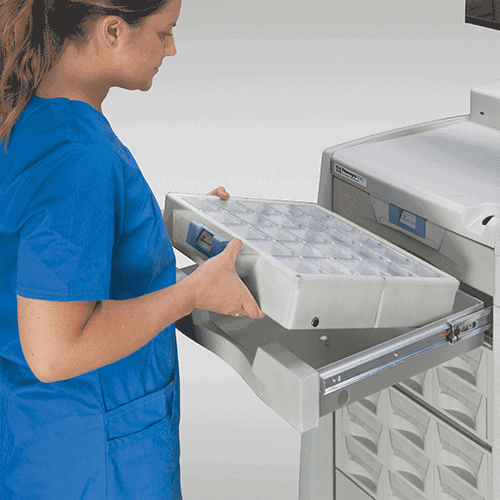

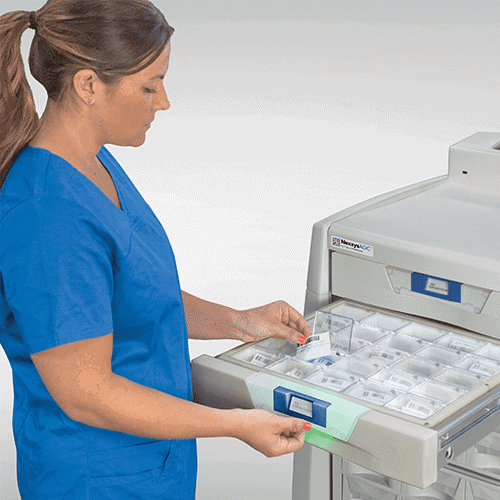

- CAMs (Controlled Access Module) are available in 3″ depths for unit doses or small items; 6″ and 10″ depths for IV, stock bottles, larger controlled med packages

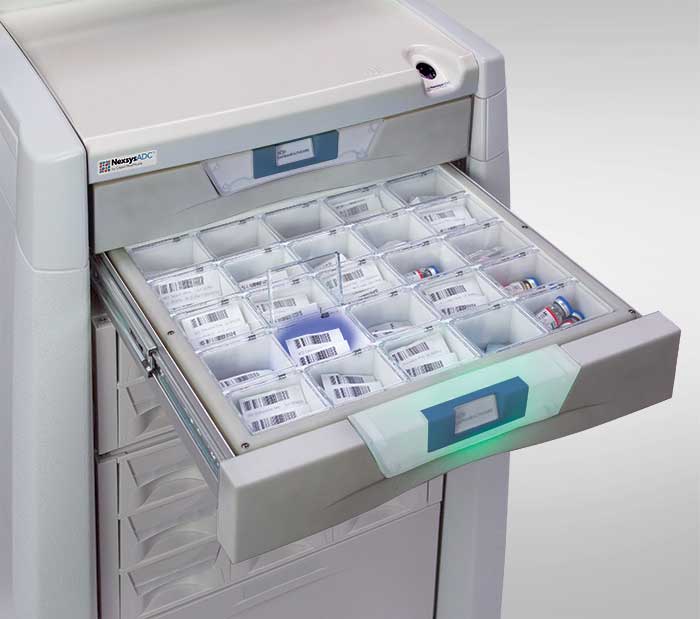

- 3″ CAM is preconfigured for up to 25 SKUs; 12 configurations available

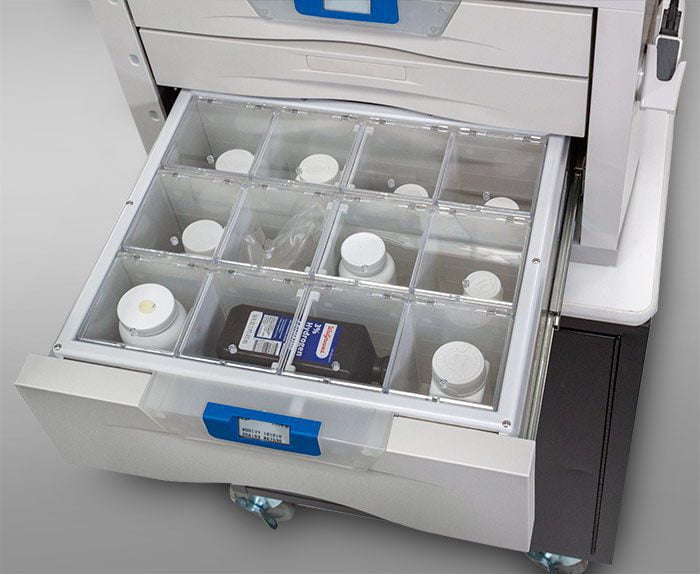

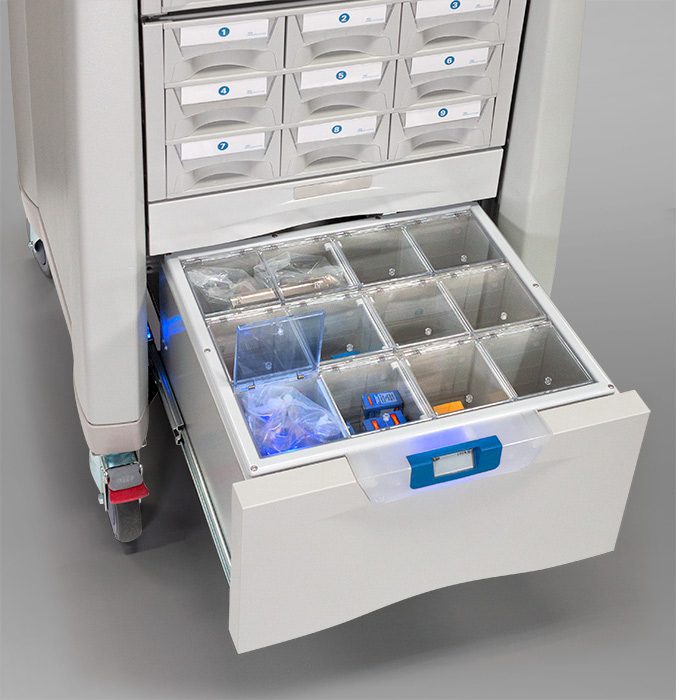

- 6″ and 10″ CAM Drawers are self-configurable for 4 to 12 SKUs per CAM
- CAM size 16.25″w x 13.375″d
- 1×1 cell 2.76″w x 2.37″d
- 1×2 cell 5.78″w x 2.37″d
- 2×2 cell 5.78″w x 4.86″d

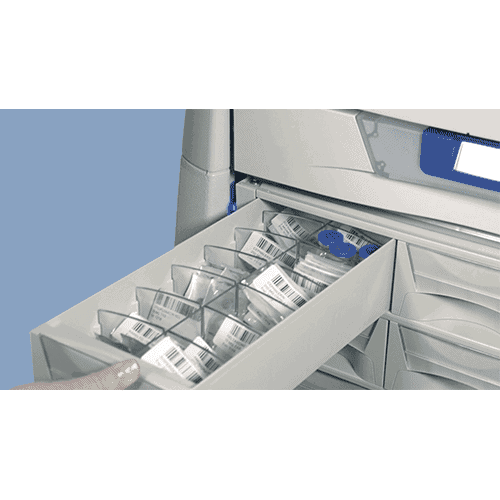

- Open cell medication bins for routine meds: 2-Tier and 3-Tier
- Each bin can be adjusted for 1 to 14 locations. These medications are also tracked.
- 2-tier (6 individual bins): 18″w x 16″d x 6.5″h, 15 lbs
- 3-tier (9 individual bins): 18″w x 16″d x 9.75″h, 21.5 lbs
- Single cassette bin: 5.25″w x 11.5″d x 2.5″h
- Positions per bin: Can contain up to 14 positions per bin. Positions can be combined by removing dividers.
- Supply drawers: Available in 3″, 6″ or 9″ depth
- Each drawer can be adjusted for 1 to 24 positions
- 3″ drawer: 17″w x 14.75″d x 3″h
- 6″ drawer: 17″w x 14.75″d x 6.5″h
- 10″ drawer: 17″w x 14.75″d x 9.75″h
