Specifications
- Dimensions: 14.6”(h) 12.5”(d) 8”(w) / 37.1(h) 31.75 (d) 20.3 (w)cm
- Weight: 9.6 lb (4.4 kg)

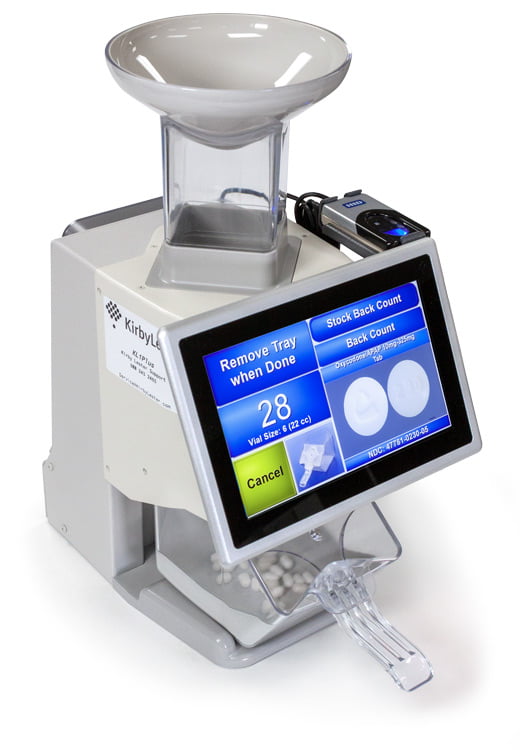

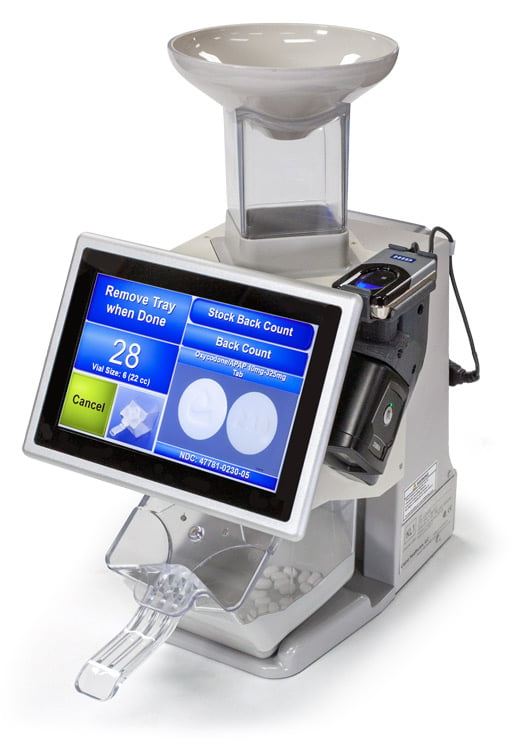

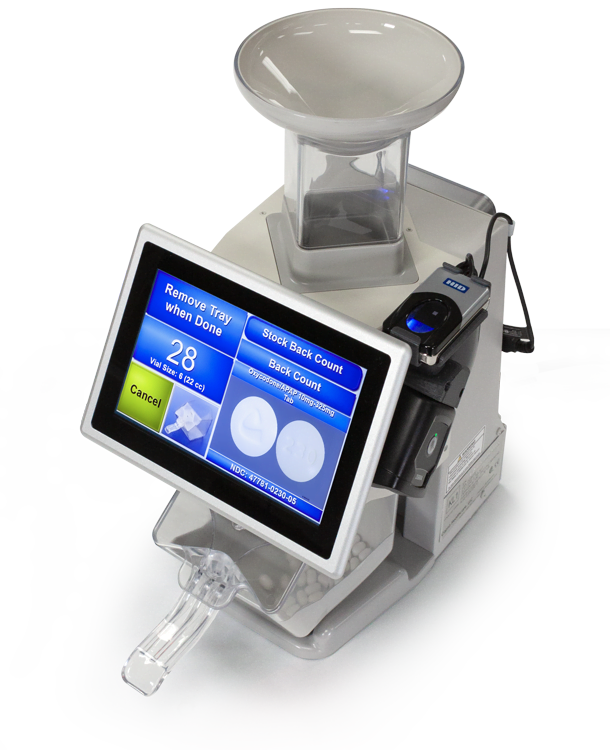

- New! “Quiet Count” Tray & Funnel with integrated sound-dampening liner. Click to order.

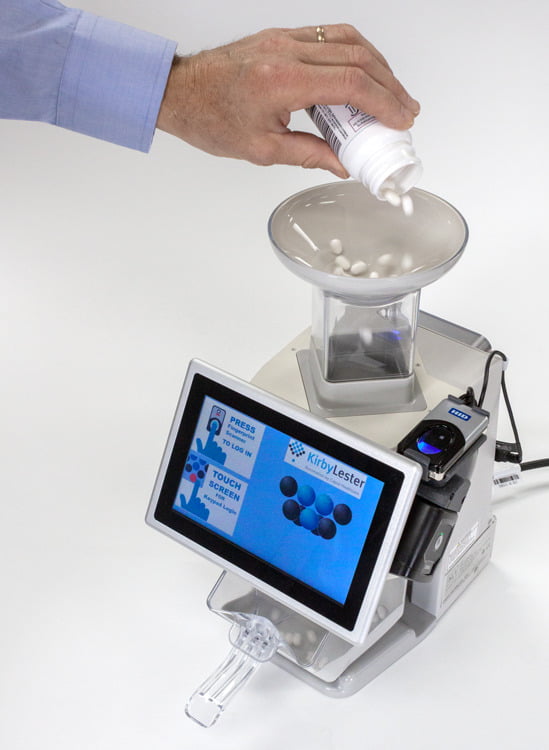

- Top Funnel Diameter: 5.2” (13.2cm)

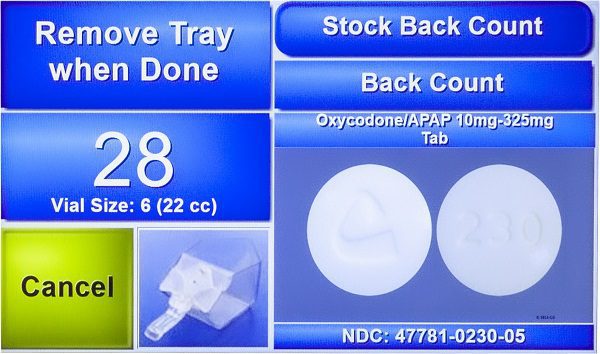

- Touch Screen: 7” WSVGA (1024 x 600) color TFT LCD display
- Biometric fingerprint scanner
- Windows-based PC
- Tray Capacity: 800cc (maximum capacity approx. 1,450 ibuprofen 200mg brown/round, approx 425 metformin 1000mg)

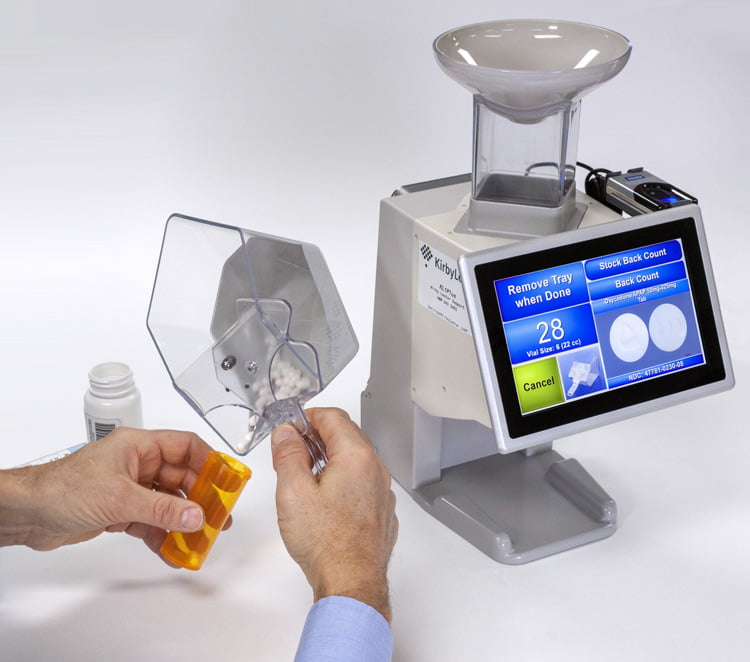

- Tray Pouring: Left or right opening
- Count Capacity: Up to 9,999
- Maximum Tablet Size: 0.86” long (22mm) and 0.74” wide (19mm)
- Minimum Tablet Size: 0.125” smallest diameter (3.175mm)
- Throughput: Up to 15 tablets/capsules per second
- Special Mode: For counting items with odd shapes or holes

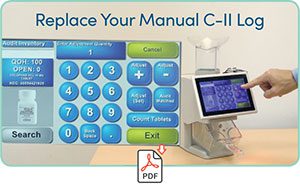

- C-II Electronic Log Mode: Track all controlled inventory from wholesaler receipt; each filled prescription and return-to-stock performed on the KL1Plus which adjusts on-device inventory; track any discretion/variance by user; browser report shows total and NDC-specific activity.
- KL1Plus browser forces quantity variance to be categorized: Broken Tablet, Clinical Transfer, DFI/Med Event Error, Expired; Manufacturer Shortage; Recalled; Theft/Loss
- Variances ID’d by user and date/time
- Inventory Mode: Essential for daily cycle counts and regular narcotics inventory. Count full and partial stock bottles (to-the-pill) and unit-of-use medications; export data for adjusting your pharmacy software, or for a record
- Pharmacy Management System Interface: Available for most common platforms; 2-way interfaces available
- User Maintenance & Tracking: Flexible system to track usage and authorize tasks; can be turned on & off; can use employee I.D. badge scan

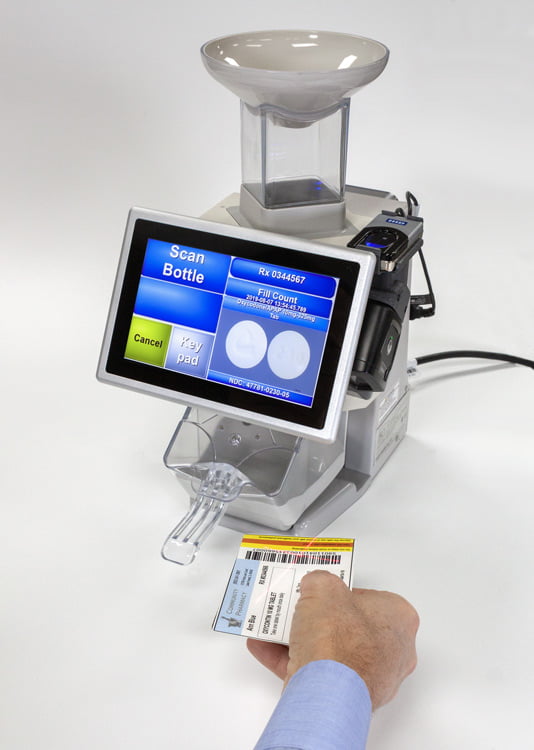

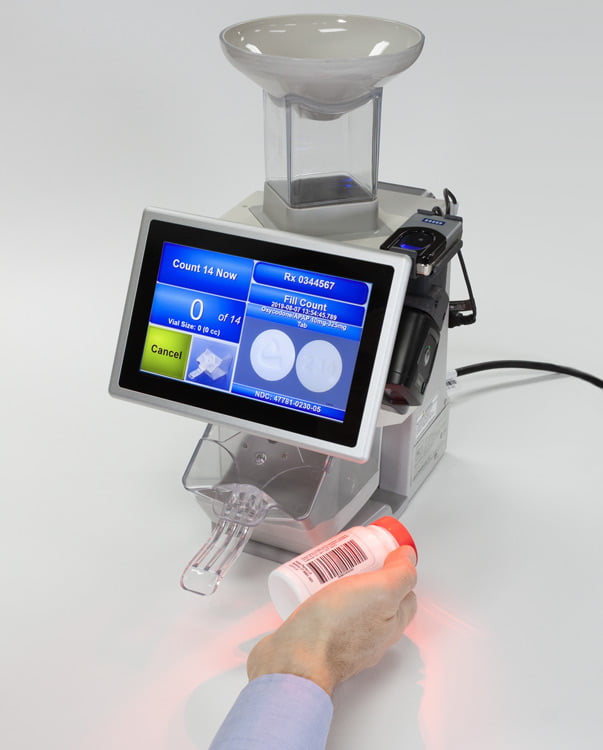

- Barcode Scanner: Imaging scanner reading traditional and 2D barcodes
- Drug Images: 100,000+ medications pre-loaded, updated via cloud connection

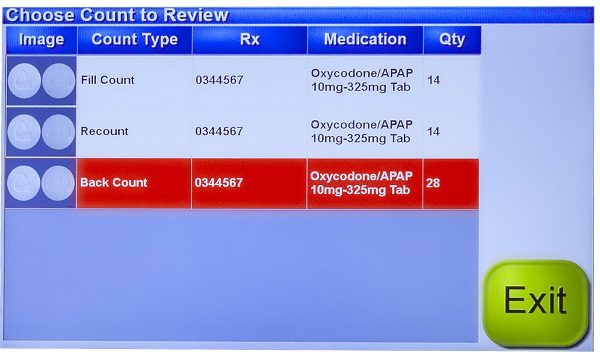

- Rx Archive: Retrieve the time/date of fill, count quantity, NDC match and user (if enabled), record kept up to 10 years
- Meets EU standards for health, safety, and environmental protection
- Meets CSA North American safety requirements for electrical equipment for measurement, control, and laboratory use

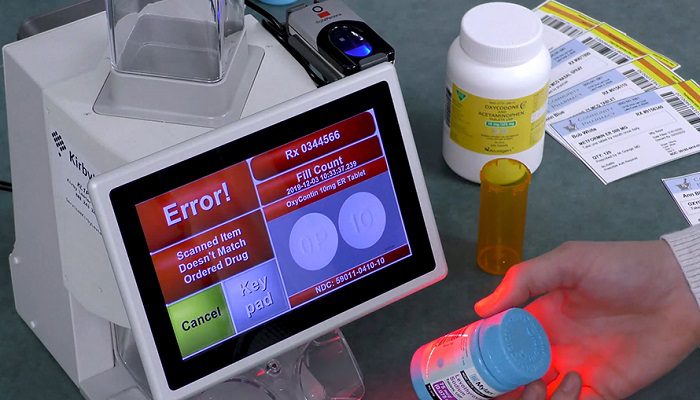

- DSCSA: The KL1Plus helps your pharmacy stay DSCSA compliant (Drug Supply Chain Security Act), including the ability to track orders to the patient level. When you process a prescription on the KL1Plus, the device’s 2D barcode reader captures the barcode on each stock bottle or medication pack, which includes the lot, expiration, serial number.
- Warranty: 1 year from ship date, parts & labor
- Important: Use of any unauthorized service provider and/or use of unauthorized parts immediately voids your Capsa Healthcare warranty. Capsa factory-repaired units retain their CSA Electrical Certification. Contact our Service team for questions, 800-243-2465 or techsupport@capsahealthcare.com
