- Product / Kirby Lester KL1 Tablet Counter
Gold Standard Tablet Counting Device for Pharmacy Filling and Inventory

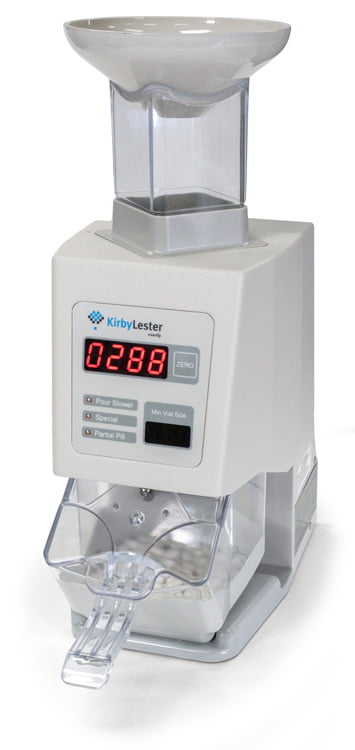

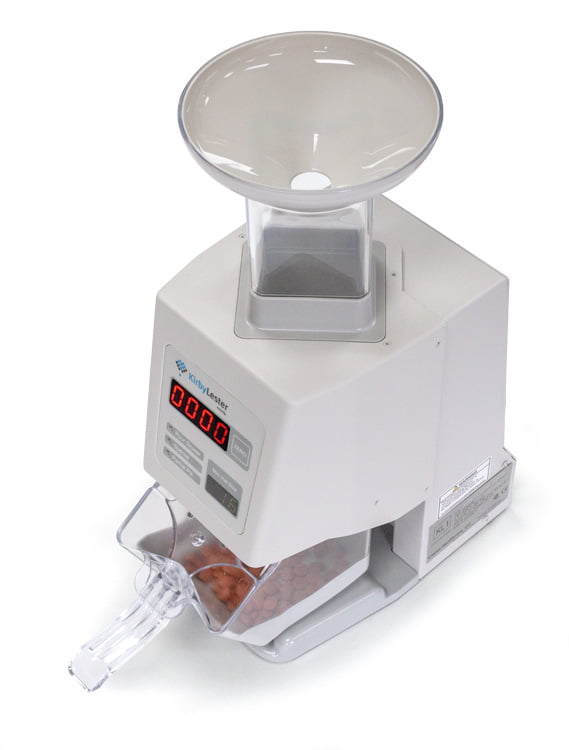

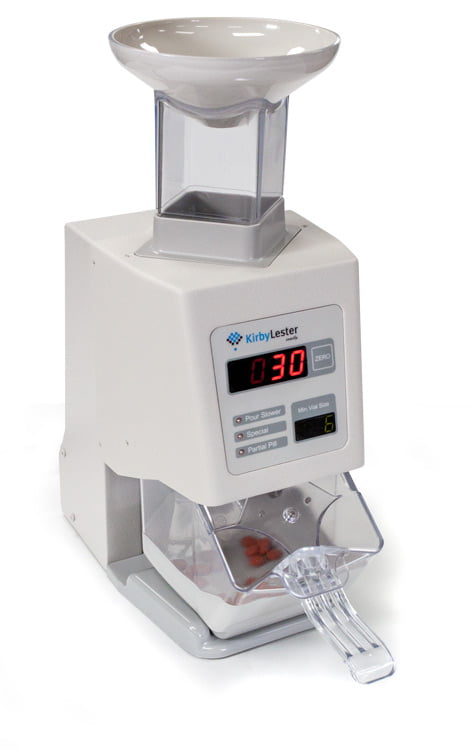

Kirby Lester KL1 Tablet Counter

Overview

The Kirby Lester KL1 is the pharmacy industry’s smallest, simplest, and fastest tablet counter. Its compact size fits into even the most crowded pharmacy and narcotics vault. Trusted across the globe, the unique KL1 counts almost any tablet or capsule quickly, conveniently and accurately. Ideal for narcotics management and physical inventory counting, and superior in every way to manual counting.



Kirby Lester KL1 is designed for:

  • Prescription counting
  • Narcotics inventory
  • Perpetual inventory software
  • Automated strip packaging device or vial filling robot, for accurate cassette/canister inventory
  • Returns and expired medication inventory tracking
  • Check-counting & bulk counting

Key Features

  • Helps the pharmacy cut unnecessary waste in time, steps, labor
  • Part of the pharmacy’s strategy to increase efficiencies in Rx filling and inventory management
  • 14.3 seconds faster (avg) than hand-counting for a 90-count Rx
  • Counting speed up to 15 tablets/second
  • Compact design, about the size of a counting tray
  • Counts almost any tablet or capsule without calibration, maintains absolute accuracy
  • Stand-alone design, needs no interfacing or I.T. set-up

Well Suited For

  • Retail pharmacy
  • Hospital outpatient pharmacy
  • LTC and specialty pharmacy
  • Pharmaceutical/industrial counting
  • Inventory check for cassettes/canisters in a vial filling pharmacy robot or automated strip packaging system

Specifications

  • Dimensions: 14.6”(h) 12.5”(d) 5.6”(w) / 37.1(h) 31.75 (d) 14.2 (w)cm
  • Weight: 6.95 lb (3.2 kg)
  • New! “Quiet Count” Tray & Funnel with integrated sound-dampening liner. Click to order.
  • Top Funnel Diameter: 5.2” (13.2cm)
  • Tray Capacity: 800cc  (maximum capacity approx. 1,450 ibuprofen 200mg brown/round, approx 425 metformin 1000mg)
  • Tray Pouring: Left or right opening
  • Count Capacity: Up to 9,999
  • Maximum Tablet Size: 0.86” long (22mm) and 0.74” wide (19mm)
  • Minimum Tablet Size: 0.125” smallest diameter (3.175mm)
  • Throughput: Up to 15 tablets/capsules per second
  • Special Mode: For counting items with odd shapes or holes
  • Inventory Mode: Ideal for large counts; maintains the count while the tray is being emptied
  • Power: Standard wall outlet, 110V / 220V / 240V, 60Hz / 50Hz (no adjustments needed); Europe 220V
  • Vial Size Indicator: Recommends vial size (drams) based on what was poured through
  • Cleaning & Maintenance: Once-a-day cleaning recommended
  • Warranty: 1 year from ship date, parts and labor
    • Important: Use of any unauthorized service provider and/or use of unauthorized parts immediately voids your Capsa Healthcare warranty. Capsa factory-repaired units retain their CSA Electrical Certification. Contact our Service team for questions, 800-243-2465 or techsupport@capsahealthcare.com
  • Optional carrying case available when portability is needed
  • Meets EU standards for health, safety, and environmental protection
  • Meets CSA North American safety requirements for electrical equipment for measurement, control, and laboratory use
