Kirby Lester KL108 Vial Dispensing Robot

Overview

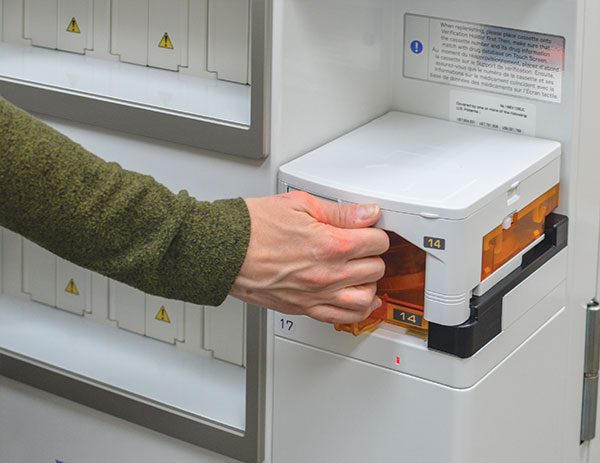

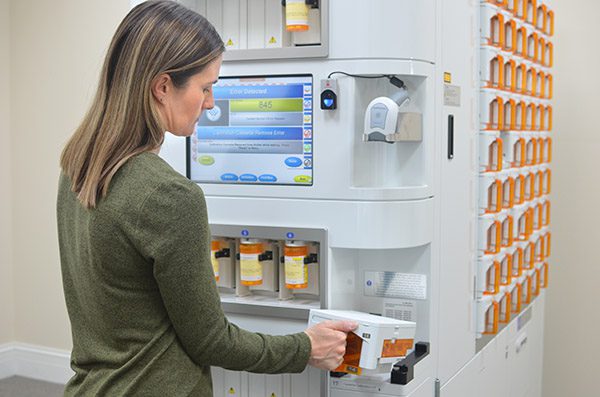

The Kirby Lester KL108 secure vial-filling robot is a breakthrough dispensing innovation. The KL108 efficiently manages the filling of your pharmacy’s most common tablets and capsules via newly designed universal cassettes that require no technician calibration. Thus, there is virtually no chance for human error when changing the medication in the cassette. With 108 high-moving tablets or capsules stored in locked cassettes, your pharmacy can completely automate 50-60% or more of your daily prescriptions. Your staff is freed up to focus on value-added activity like customer service, Star ratings, and MTM. The KL108 is ideal for busy pharmacies that demand precision, flexibility, accountability and security. If your pharmacy experienced frustration with older robotic fillers that required regular recalibration of hand-adjusted cassettes/miscounts/dropped pills, the KL108 design is sure to impress.

Key Features

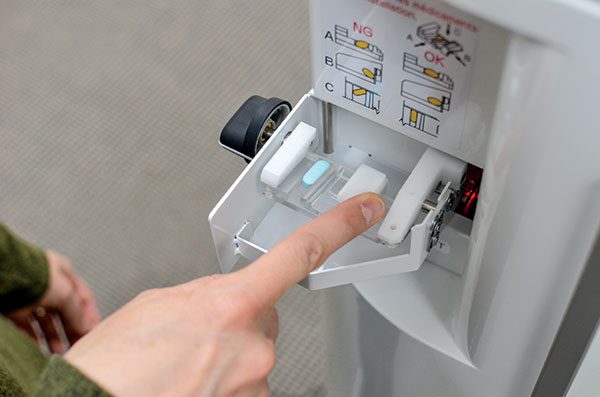

  • Innovative pharmacy technology with all-new cassette design
  • Accommodates 108 of a pharmacy’s high-volume medications (50% or more of total daily prescriptions for a community pharmacy)
  • Only 67.5″ deep, requires little or no remodeling and fits into most pharmacy spaces
  • Frees up 5-10 hours/week, allowing staff to be deployed to concentrate on important patient-care initiatives
  • Exclusive FillSafe security system prevents filling from a medication cassette whose refill or return-to-stock was not authorized by a pharmacist

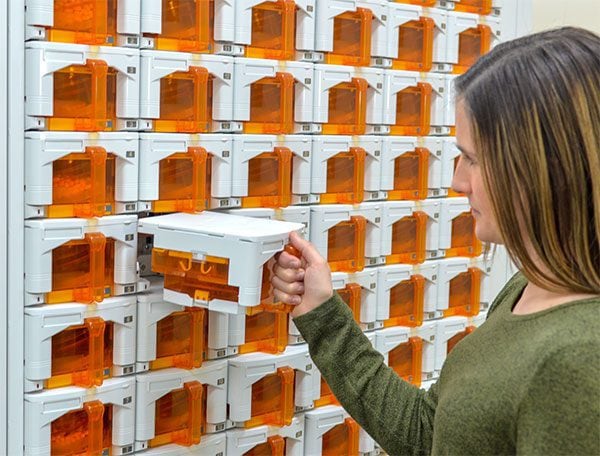

  • Locked cassettes and user tracking provide greater control against shrinkage/diversion concerns
  • Prescriptions are labeled, counted and presented in about 30 seconds
  • User-friendly, simple maintenance
  • Capsa is ISO 27001:2013 certified, meeting the highest standards for cyber-security and HIPAA compliance
  • 20+ reports for virtually all operation including user tracking, drug utilization, patient prescription records

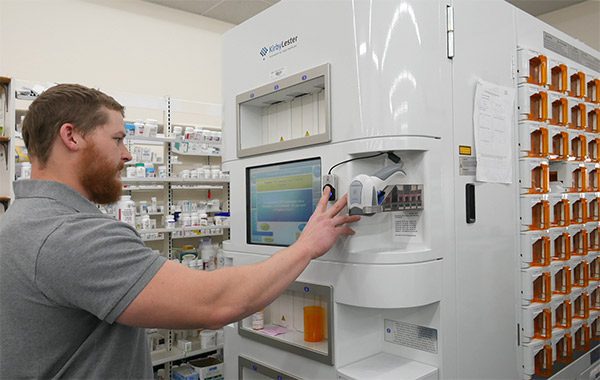

Kirby Lester KL108 Vial Dispensing Robot Fingerprint Scanner

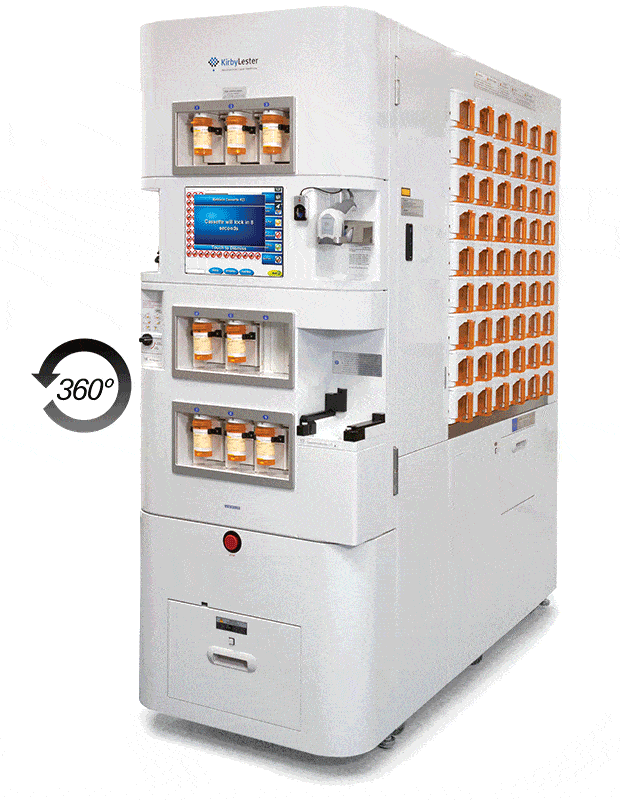

Virtual Tour

Take a tour of the Kirby Lester KL108 robotic dispensing system.

Drag the KL108 to rotate it and click the buttons for product highlights.

Well Suited For

  • Retail Pharmacy and Hospital Outpatient Pharmacy: Efficiently dispense 50-60% or more of total daily fills in regions where patient vials are the most common
  • Mail Order/Central Filling Pharmacy

Specifications

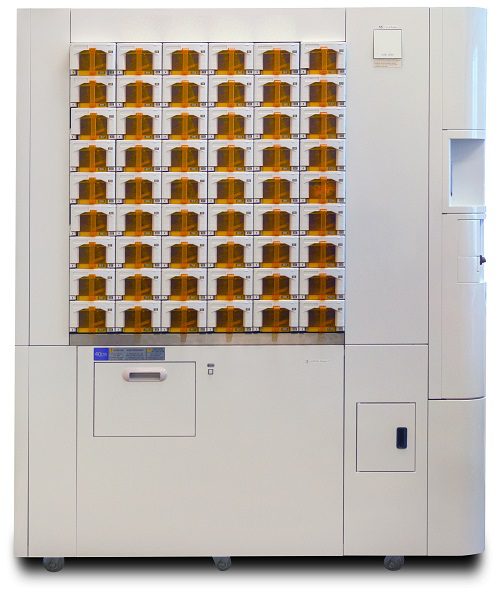

  • Robot Dimensions: 78.25”(h) 67.5”(d) 29.75”(w) / 199(h) 171(d) 75.6(w)cm
  • Weight: 1,400 lbs. approx. when installed (635kg); 1,168 lbs. when cassettes are empty (530 kg)
  • Pick-up Windows: 9
  • Power: Dedicated standard 115V, 60Hz, 15A power outlet; normal operation draws up to 300w/hour not to exceed 500w

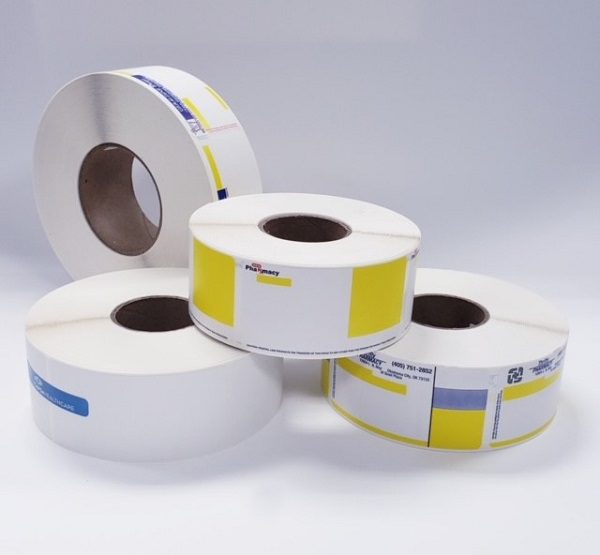

  • Printer: Direct thermal labels: Fast-feed, direct thermal labels, 4” x 2”. 1,200 labels per roll, flexible design customizable for each pharmacy, 2” core on supply and pick-up (6” label available)
  • Operating System: Windows 10
  • Low Operating Volume: 40.9 dB at stand-by; 62.6 dB (max) while operating
  • Reports: Offers over 20 standard reports that are customizable for the pharmacy’s needs
  • FillSafe™ Security System: Prevents unauthorized filling, depleting or switching medications in any of the 108 cassettes; customizable for each pharmacy’s workflow and security needs
  • Pharmacy Management System Interface: Available for most common platforms
  • Prescription Archive: Retrieve any past dispensed prescription onscreen and via printable report, up to 10 years
  • Capsule Dimensions: Length min 5 mm, max 26 mm; Width min 5 mm, max 15 mm.
  • Tablet Dimensions: Diameter/width min 5 mm, max 15 mm; Height min 2 mm, max 10mm.
  • Important Warranty Note: Your KL108’s warranty and service plan specifies that use of any unauthorized service provider and/or use of unauthorized parts immediately voids your Capsa Healthcare warranty. Contact your Capsa account manager or our Service team for questions, 800-243-2465 or techsupport@capsahealthcare.com

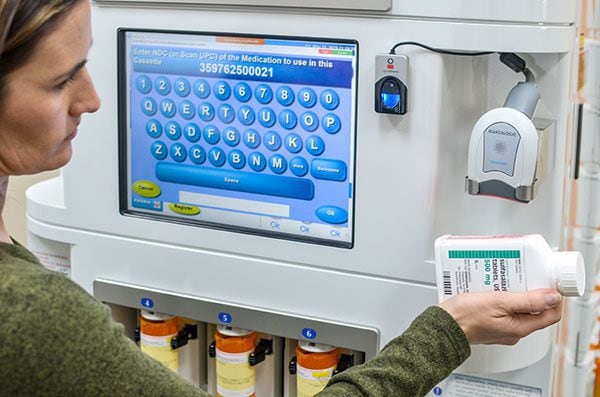

  • DSCSA: The KL108 helps your pharmacy stay DSCSA compliant (Drug Supply Chain Security Act), including the ability to track orders to the patient level. The device’s 2D barcode reader captures the barcode on each stock bottle, which includes the lot, expiration, serial number.

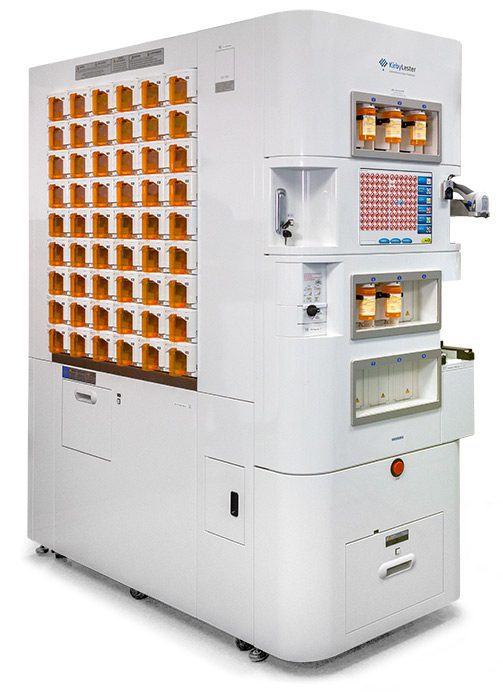

Kirby Lester KL108 Pharmacy Automation Robot

Connect with an Expert for Product & Pricing Info

Resources

Product Brochures
Tecnologia Kirby Lester Hoja Informativa Espanol
Product Brochures Icon
Tecnologia Kirby Lester Hoja Informativa Espanol
Product Brochures
Apercu Produits-Kirby Lester & Capsa-Francais
Product Brochures Icon
Apercu Produits-Kirby Lester & Capsa-Francais
Product Brochures
Kirby Lester KL108 Brochure
Product Brochures Icon
Kirby Lester KL108 Brochure
Product Brochures
Pharmacy Automation Brochure
Product Brochures Icon
Pharmacy Automation Brochure
Product Brochures
Case Study
Pharmasave #736 Labor Savings: Kirby Lester KL108
Case Study Icon
Pharmasave #736 Labor Savings: Kirby Lester KL108
Case Study
Product Literature
Kirby Lester Robot Service Contract Renewal
Product Literature Icon
Kirby Lester Robot Service Contract Renewal
Product Literature
Robot Readiness Checklist
Product Literature Icon
Robot Readiness Checklist
Product Literature
KL108 Hoja Informativa Espanol
Product Literature Icon
KL108 Hoja Informativa Espanol
Product Literature
KL108 Fiche Produit-Francais
Product Literature Icon
KL108 Fiche Produit-Francais
Product Literature
Windows 10 Update-KL60 KL100 Robot
Product Literature Icon
Windows 10 Update-KL60 KL100 Robot
Product Literature
Kirby Lester KL108 At-A-Glance
Product Literature Icon
Kirby Lester KL108 At-A-Glance
Product Literature
Section 179 Tax Benefits
Product Literature Icon
Section 179 Tax Benefits
Product Literature
Product Manuals

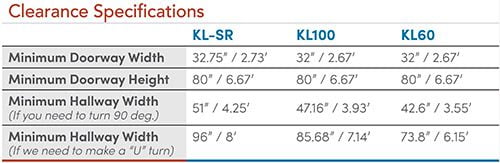

KL Robot Implementation Clearance Specifications Graphic
