- Product / TruAir™ Endoscope Drying Cabinet
HEPA Filtered Forced Air Channel Drying Cabinet

TruAir™ Endoscope Drying Cabinet

Overview

The TruAir™ Scope Drying Cabinet is designed to keep endoscopes safe and dry while adhering to ST91 standards. The cabinet features a TruHEPA-filtered airflow system that creates a positive pressure barrier to reduce the risk of contamination. The TruAir™ system simultaneously provides HEPA-filtered air to up to 18 flexible endoscope lumens, filtering particles as small as 0.03µm with a filtration rate of 99.97%. The cabinet is available in a range of sizes and storage capacities and offers a choice of locking systems for added security.

Key Features

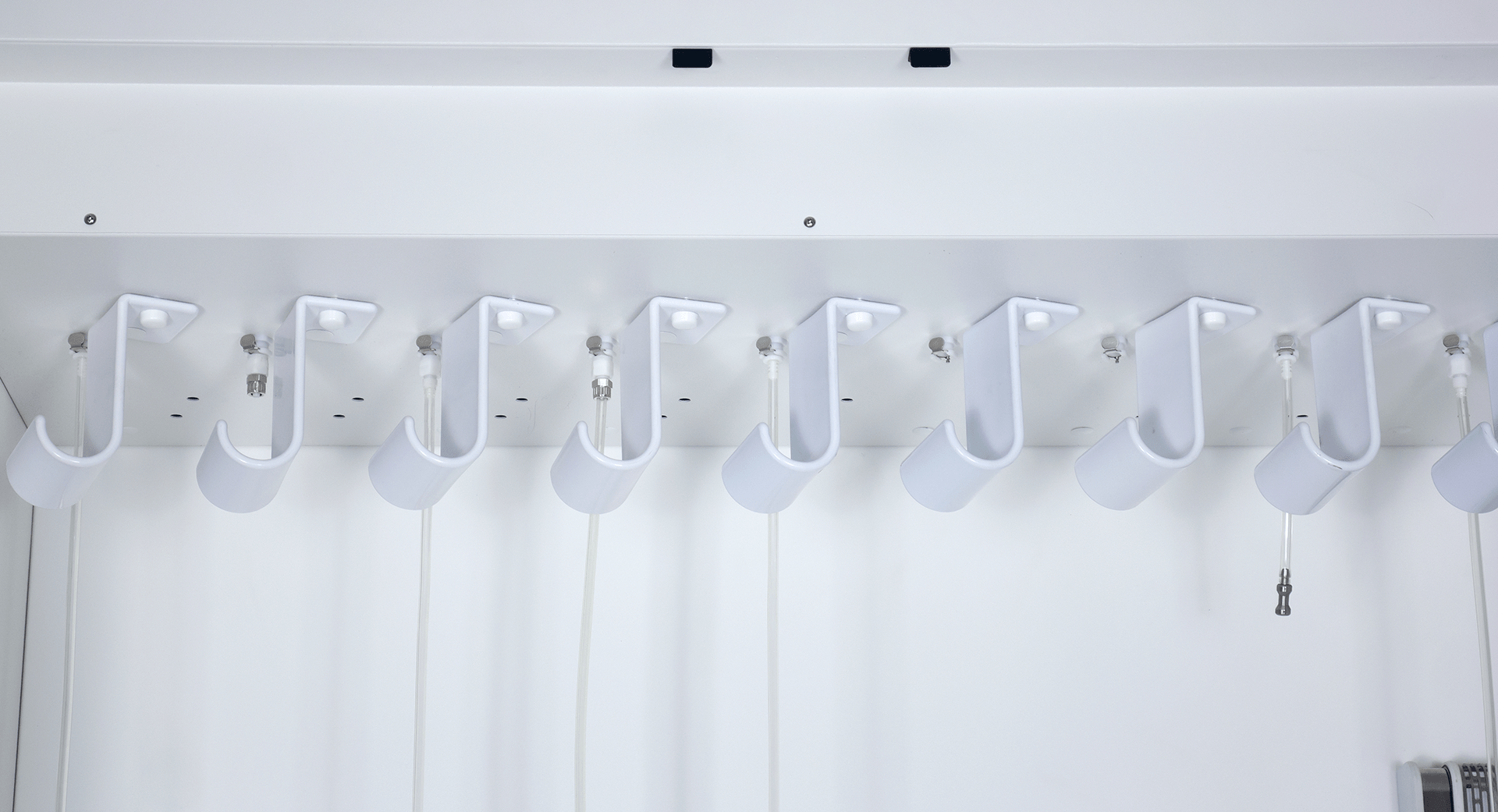

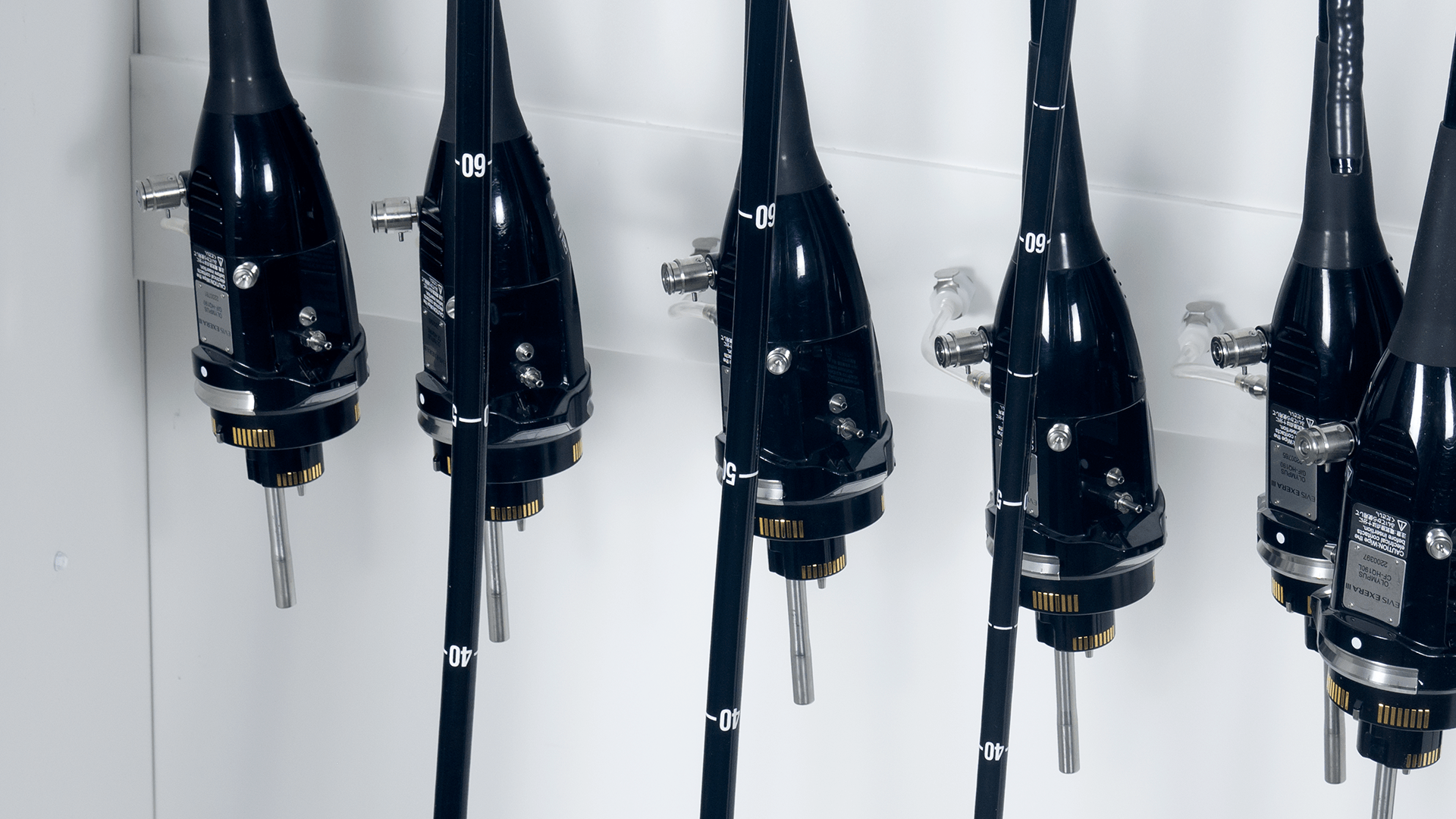

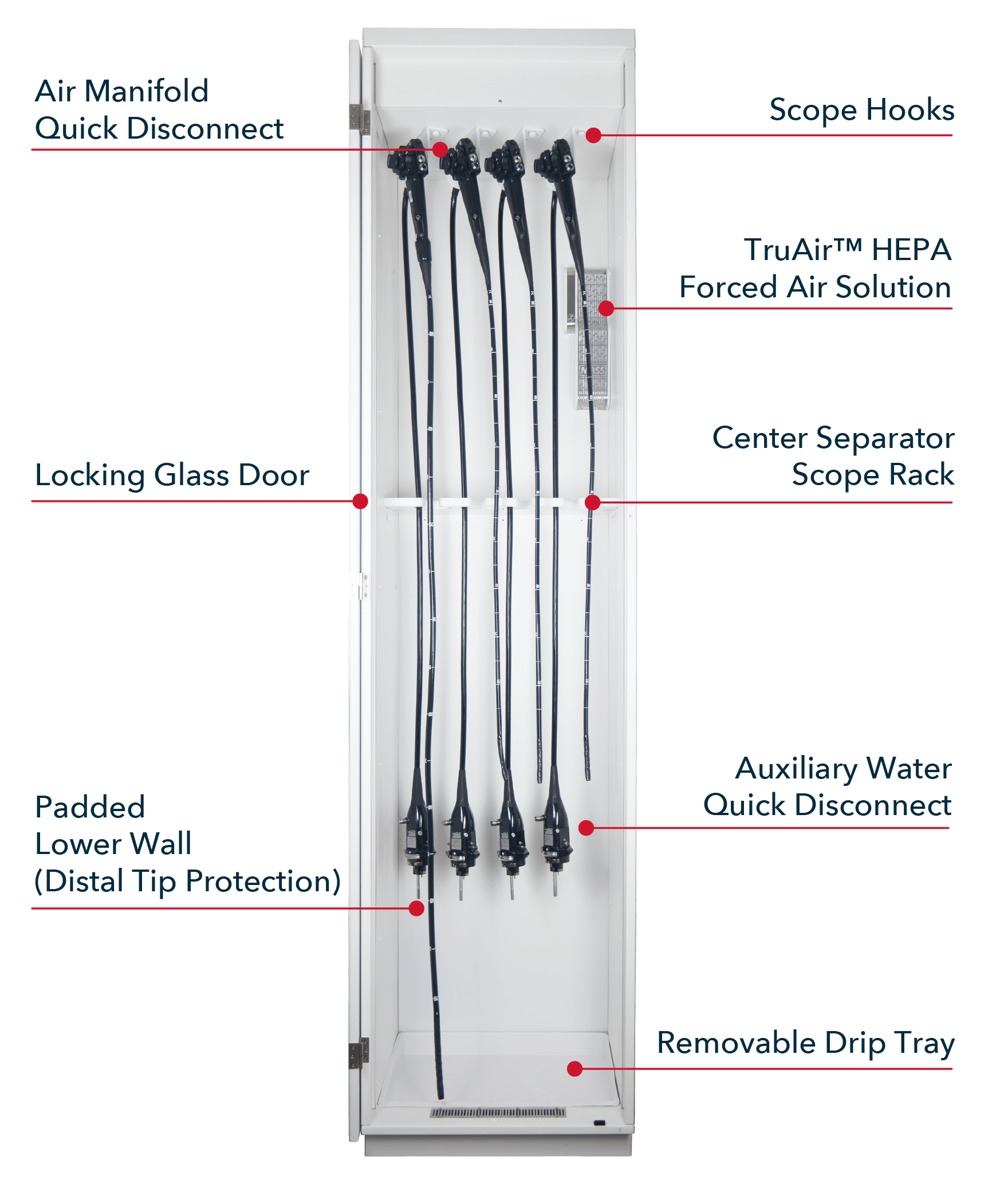

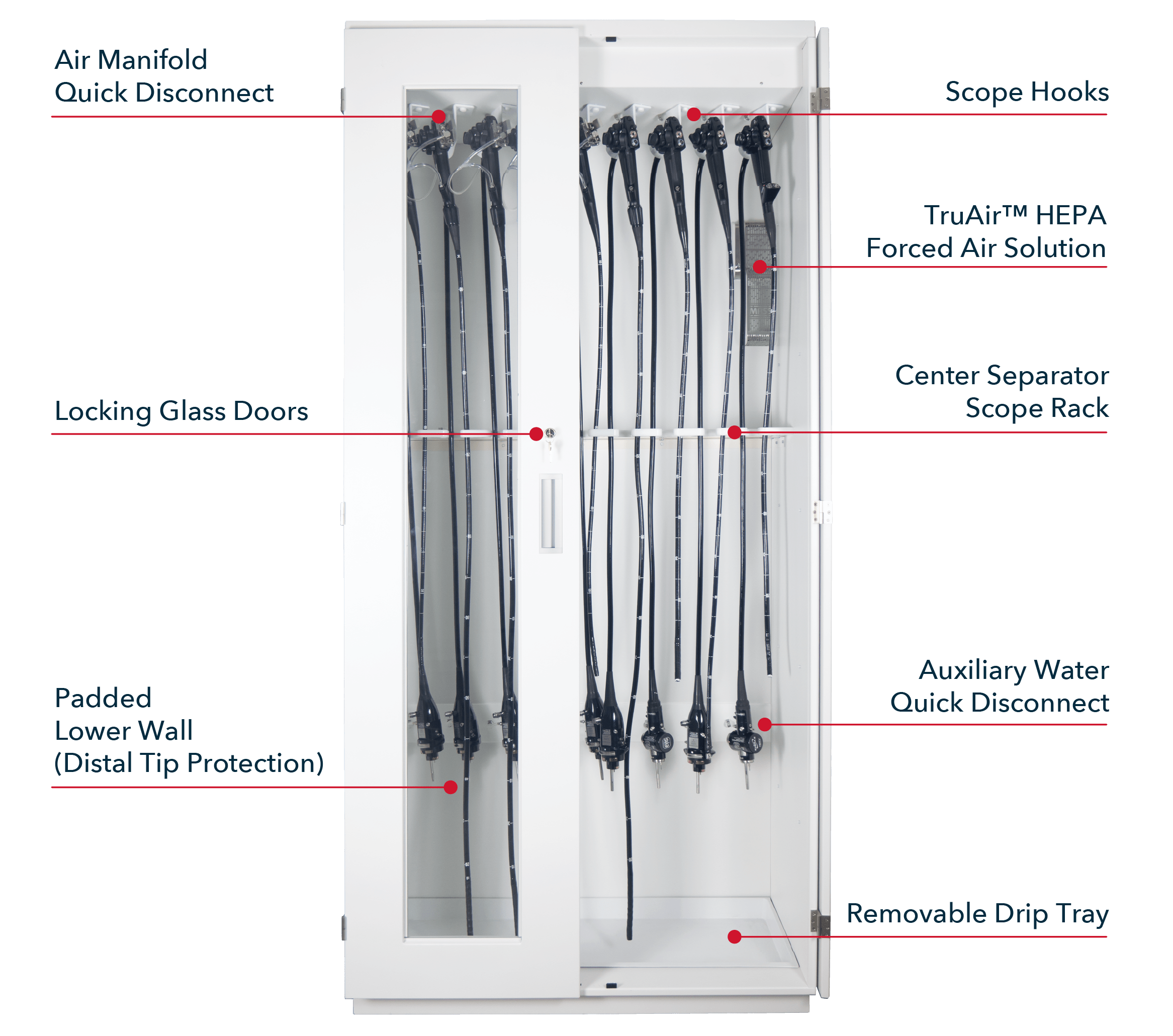

TruAir Scope Drying Cabinet Hangers & Lower Manifold

  • Capacity for 4-18 flexible endoscopes
  • Available in two sizes
  • Self-contained TruHEPA-filtered air system
  • Filtration rate of 99.97% for up to 0.3µm
  • High flow rate channel drying with 6LPM per scope
  • 45dB volume equivalent to light rain
  • Front rotating scope hooks for greater access
  • Air manifold with a quick disconnect
  • Padded lower back wall for distal tip protection
  • Removable drip tray for easy cleaning
  • Reusable drying connectors, including auxiliary water
  • Multiple finish options, including powder-coated metal and stainless steel
  • Keyed and keyless locking systems for added security

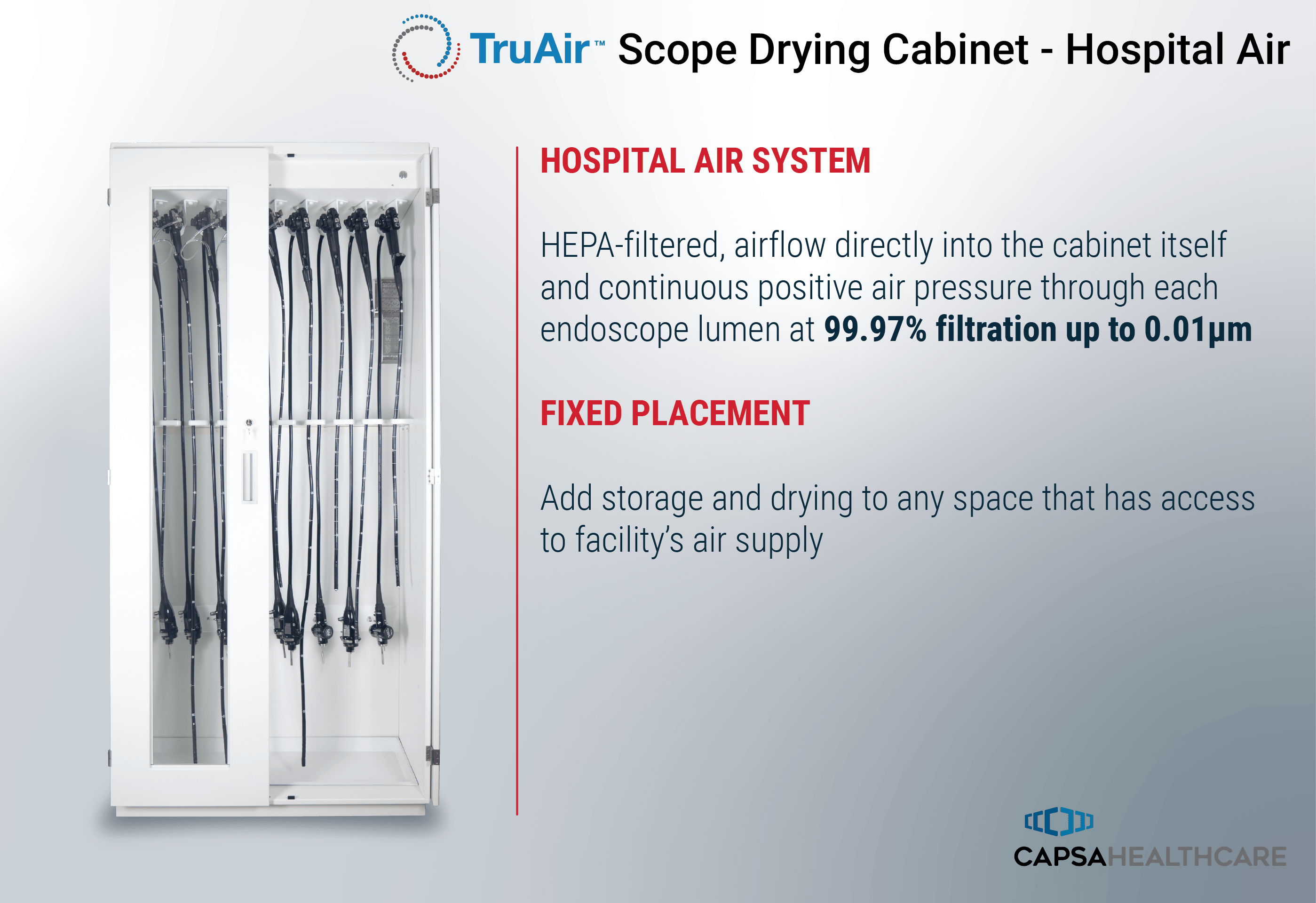

  • Hospital Air integration sold separately

Well Suited For

  • Endoscopy Suite
  • Hospitals
  • Ambulatory Surgery Centers
  • OR Department

Specifications

Model Numbers:
  • SAS-4P-DRY
  • SAS-8P-DRY
  • SAS-9P-DRY
  • SAS-18P-DRY
External Dimensions:

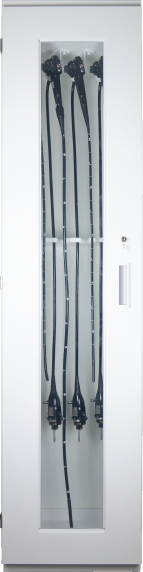

  • Half Width:
    • 21.625″W x 18.75″D x 93.75″H (SAS-4P/8P-DRY)
  • Full Width:
    • 40.875″W x 18.75″D x 93.75″H (SAS-9P/18P-DRY)
Available Finishes:
  • Bright White (Powder Coat)

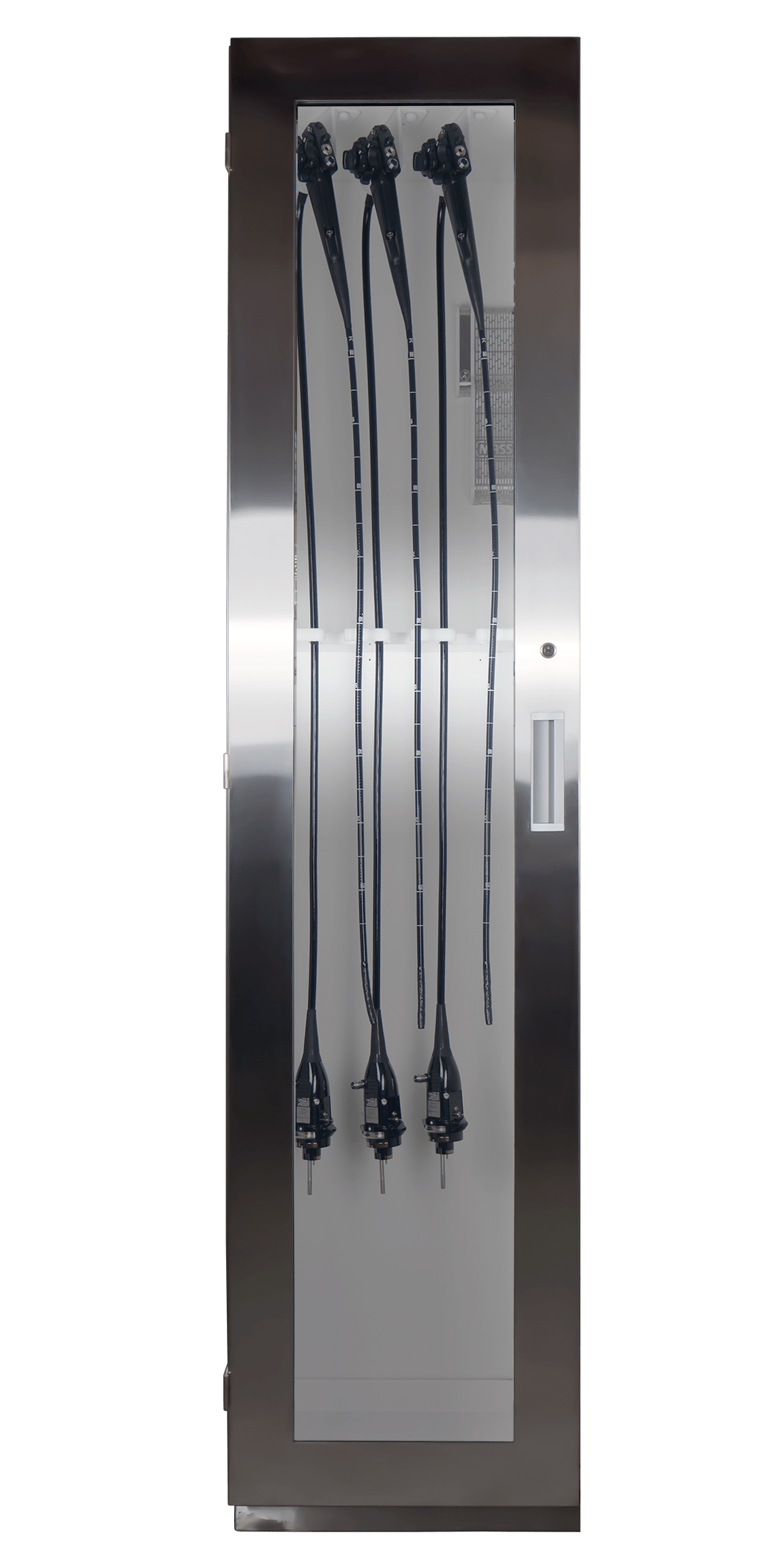

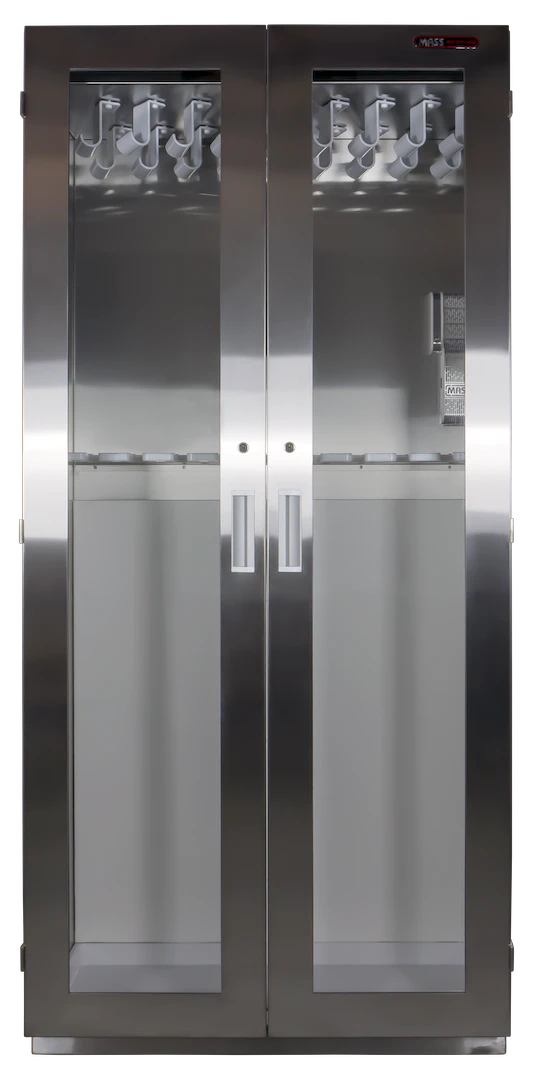

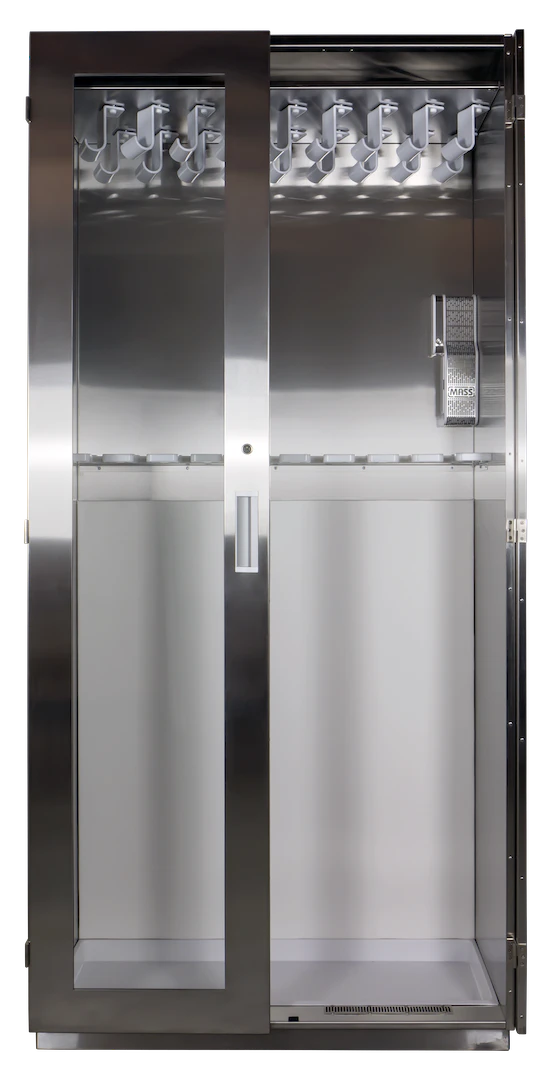

  • Stainless Steel
Construction:
  • Powder Coated Metal
  • Stainless Steel
  • Locking Hinged Glass Doors
Air Supply:
  • Air Pump with HEPA Filter (Upper Manifold)
  • HEPA Filter Fan (Cabinet)
Air Flow Rate Filter Efficiency:
  • 6 L/min per Scope (Minimum)
Air Pressure:
  • 4 psi (Maximum)
Noise:
  • 45 db
Linear Pump Filter Efficiency:
  • 99.97% up to 0.03μm
Cabinet Filter Efficiency:
  • 99.97% up to 0.03μm
Electrical Supply:
  • 120 V Wall Plug-3A (10′ Cord Exiting Top Right of Cabinet)
Power Consumption:
  • 128W
Rated Amperage:
  • 4.1A
Capacity:
  • 4-18 Flexible Endoscopes
TruAir Scope Drying Cabinet - Integrated Air Overview
