MedLink™ Medication Management Cart

Request a Quote

Overview

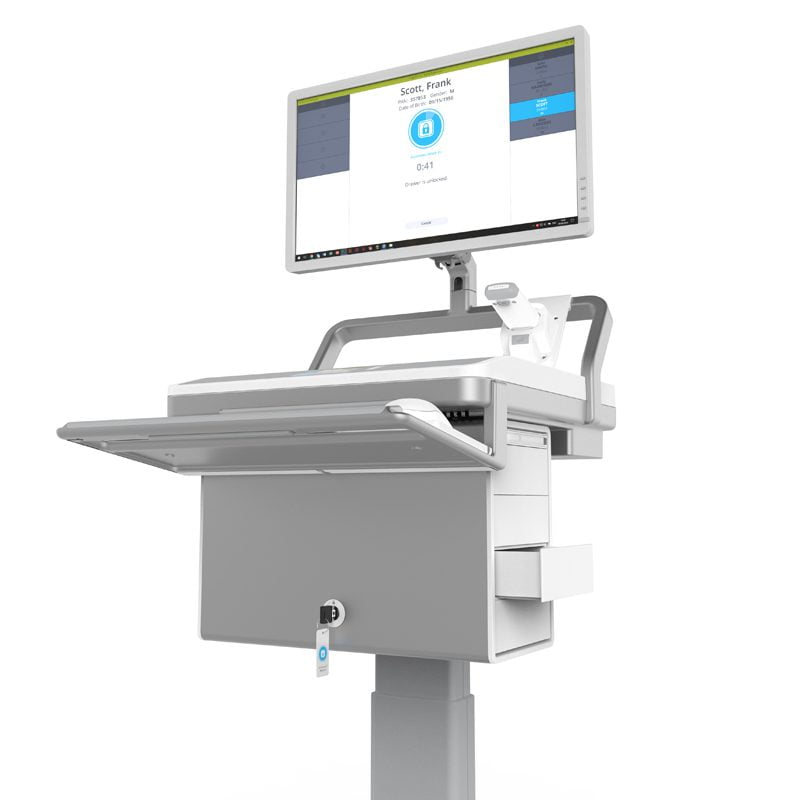

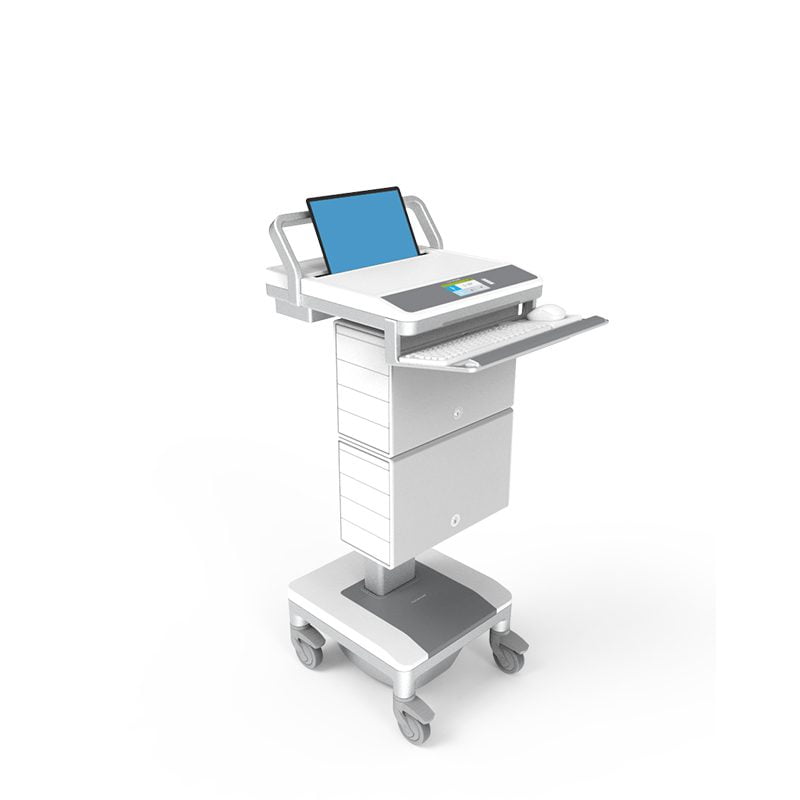

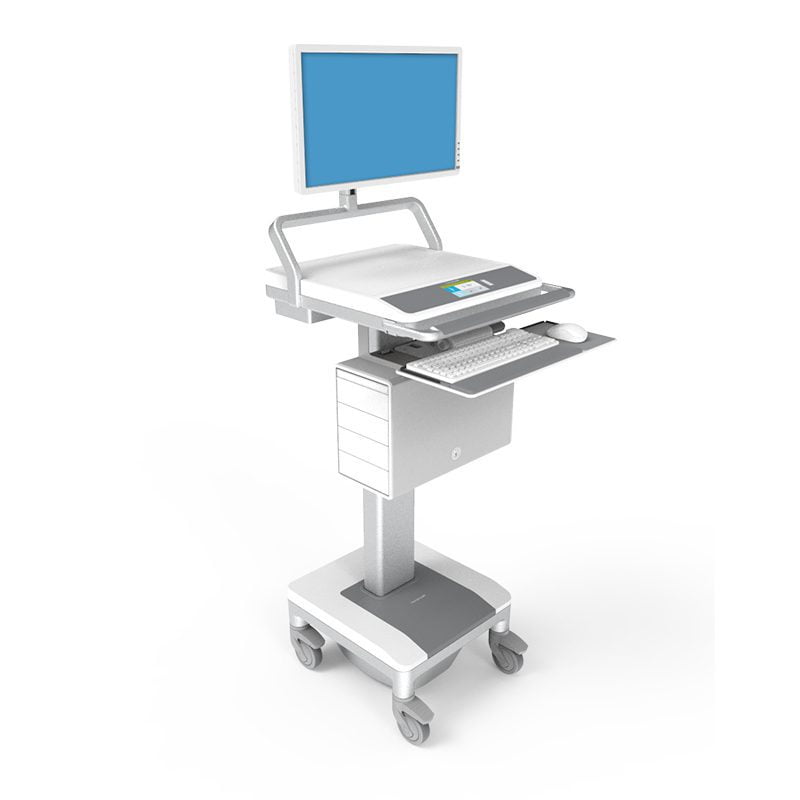

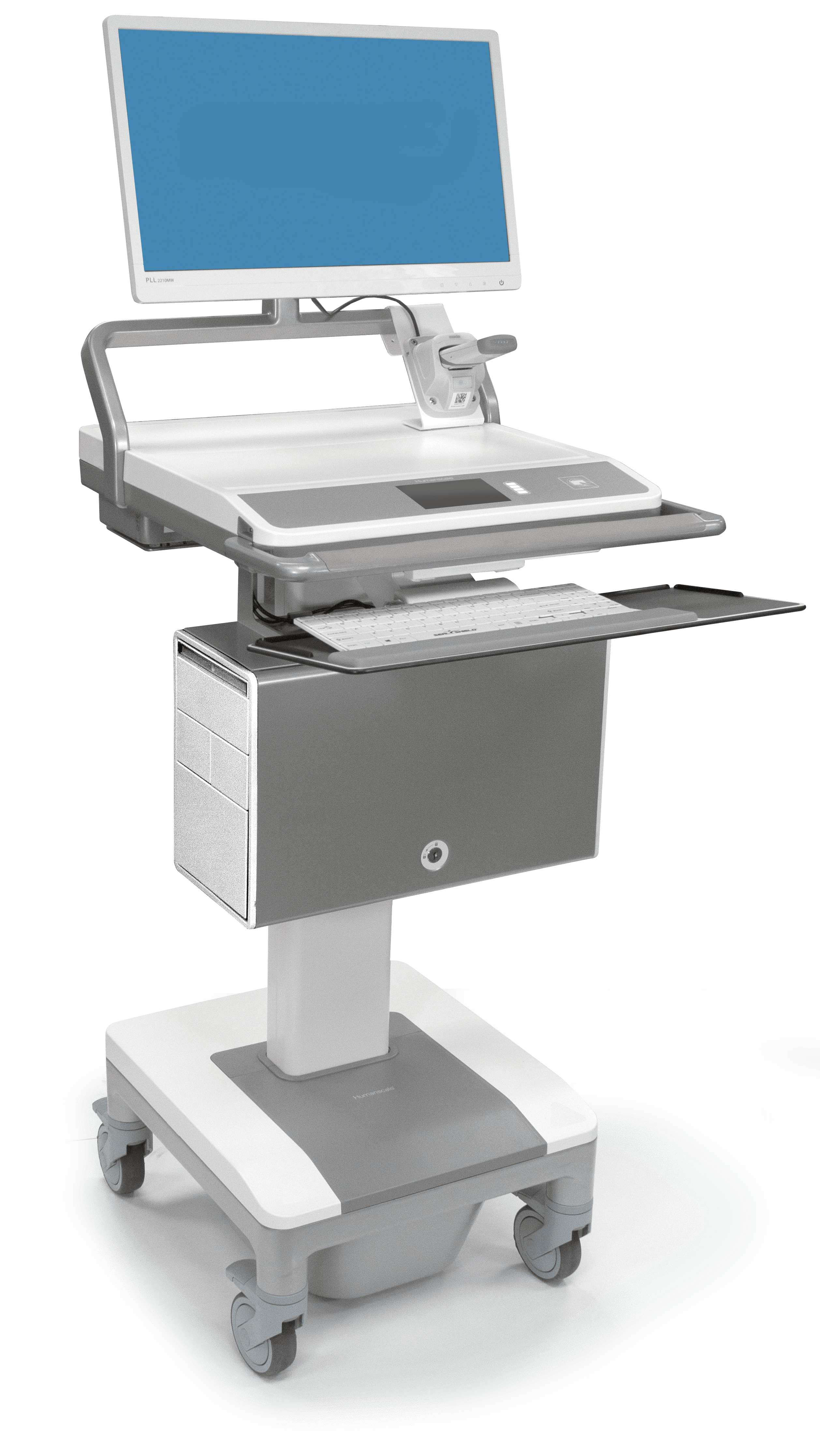

The MedLink™ Cart is a medication management solution that ensures safe, accurate medication administration. It’s specifically designed to reduce human error, keep patients safe, and create a closed-loop medication system using lockable drawers and patient wristband scanning. This ensures each patient receives the correct medication while allowing caregivers to focus on patient care.

MedLink creates a closed-loop medication management system. First, individual drawers are loaded with medication at the pharmacy, ADC or nursing station. Then each drawer is electronically labeled assigned to a specific patient.

USA Patent: US20200315891A1

MedLink™ Pro Medication Management Software

T7 MedLink™ Video Overview

Key Features

AutoFit™ Technology offers ease of adjustment for each user in a shared work environment, providing one, simple, combined adjustment for the work surface, keyboard and display. The 20” (50.8 cm) height range ensures comfortable ergonomic accommodation for seated and standing use.
Power Track™ steering enables caregivers to easily maneuver in tight spaces and corridors, even with one-handed operation.
Completely encased wire management system, mitigating both clutter and infection control concerns.
This streamlined design makes cleaning easy and promotes a healing environment.

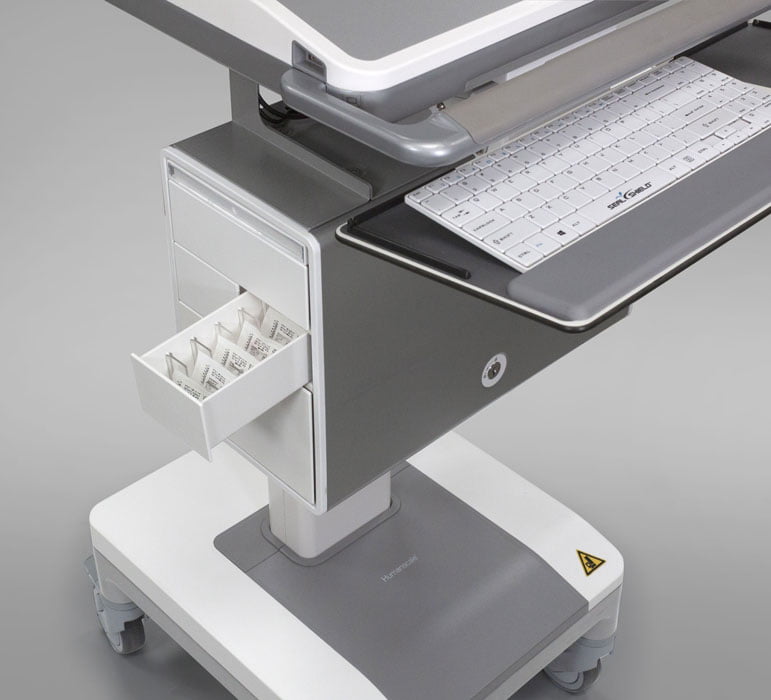

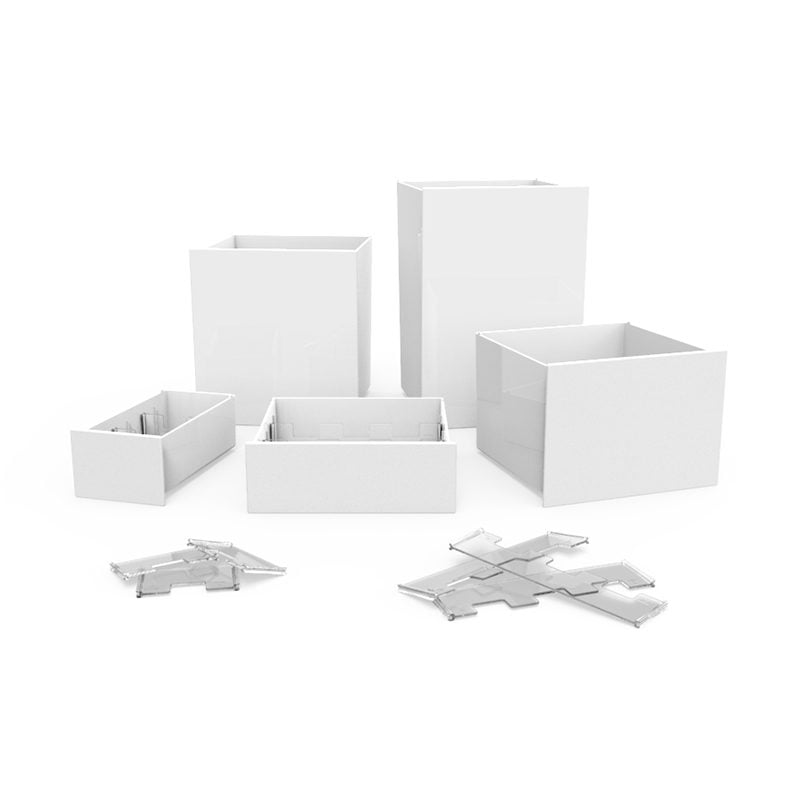

Modular storage system can be upgraded and adapted to suit workflow. MedLink Housings include two removable cassettes that can be transported and exchanged while drawers remain locked and secured.

Well Suited For

Patient Triage
Physician Rounds
Patient Registration
Ambulatory/Outpatient Areas
ICU
Operating Rooms
Med/Surg
Vaccination Sites

Specifications

Cart Specifications

Battery Specifications

AC POWER SYSTEM

120VAC version
• Input: 120VAC
• Output: 120VAC pure sine wave, 60Hz
• Continuous output capacity: 150W
• Peak output capacity: 225W

230VAC version
• Input: 230VAC
• Output: 230VAC pure sine wave, 50Hz
• Continuous output capacity: 150W
• Peak output capacity: 225W

RECOMMENDED HEIGHT ADJUSTMENT OPERATION

• Do not operate the height adjustment continuously for more than 2 minutes. After 2 minutes of continuous operation, 18 minutes of rest time should be allowed to the system.

MONITOR WEIGHT

• The MedLink™ cart can accommodate max. 2 monitors weighing up to 26 lbs (11.6 kg) together.

COMPUTER DIMENSIONS

• The MedLink™ cart can accommodate a computer up to (L x W x H) 17.35” x 12.3” x 2.25” (440 mm x 312.5 mm x 57 mm) and has a 16.8” (426 mm) wide opening for a laptop screen.
